100% Domestically ProducedAutonomous Navigation AMRLogistics Robot SMAR Series

Built with 100% Korean technology, from hardware to proprietary control algorithms. Offering unmatched safety and custom integration that budget robots can't replicate, we power unmanned dark factories and smart factory automation.

Get in Touch
SMAR - M2

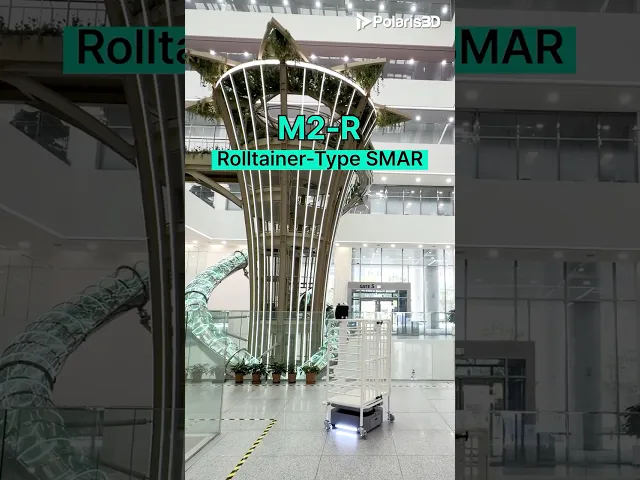

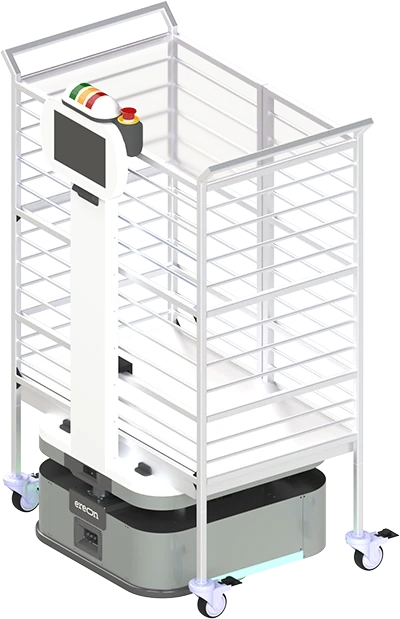

M2-RRolltainer-Type Mobility Robot

roll tainer type amr RMR
Battery

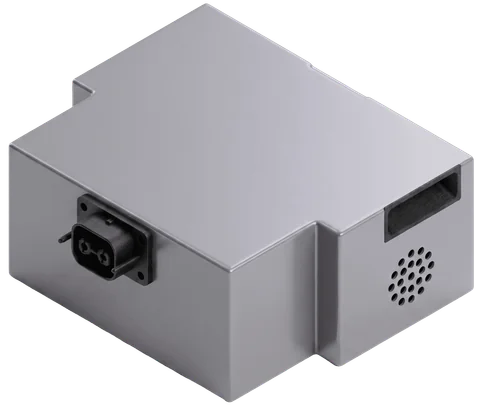

polaris3d M2 battery315mm260mm135mm
Basic Information
Size (W*D*H)810*630*1500mm
Weight108kg
Load capacity60 kg
Exterior materialMetal
Upper Module Size (W*D)810*550*1200mm (1 tier/customizable)
Upper Module Height350~ 1200mm
Liftable height-
Battery
Battery Type (Option)LFP Battery / Li-ion Battery
Capacity25 Ah
Charging Time by Charger Current6A Charger: Approx. 4h 20m / 15A Charger: Approx. 2h
Operating Time7h (Max. Payload) ~ 12h
Charging Time5h
HMI Battery Display
HMI Battery InfoSOC (%), SOH (%), Voltage (V), Current (A), Temperature (°C), Charging Status
Weight
Drive Unit Weight58kg
Battery Weight7kg
Total Weight65kg
Sensor
LiDAR2 front & rear
Depth CameraBottom 2
Safety BumperApply
Motor Type6.5 inch
Driving
STOApply
Driving modeFull Self-Driving
Max. Speed1.2 m/s
Max. Mapping Area500*500m
Service Module
Loadable Size760*500*900mm
Logistics Load Size760*500*900mm
MaterialMetal
Display10 inch touch display

M2 Case Studies

Polaris3D Real Industrial Site and M2 Operation Video

View All Case Studies

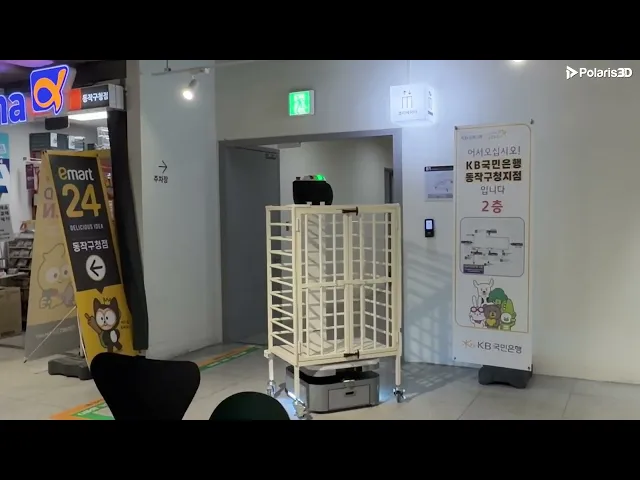

M2-R in action: Riding the elevator inside Dongjak-gu Office
M2-R moving freely between floors via elevator integration inside Dongjak-gu Office
