100% Domestically ProducedAutonomous Navigation AMRLogistics Robot SMAR Series

Built with 100% Korean technology, from hardware to proprietary control algorithms. Offering unmatched safety and custom integration that budget robots can't replicate, we power unmanned dark factories and smart factory automation.

Get in Touch
SMAR - M3

M3-PPicker Type

A picker-type AMR with a payload of 80 kg and 6 hours of driving per charge Hybrid SLAM navigation, precision docking (±5.0 mm / ±0.5°) and PIO interface for equipment integration

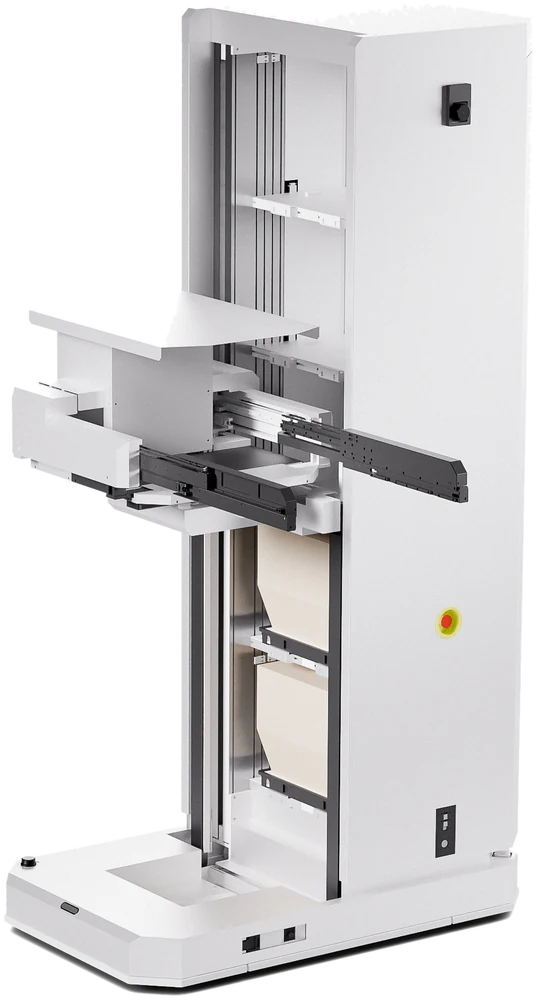

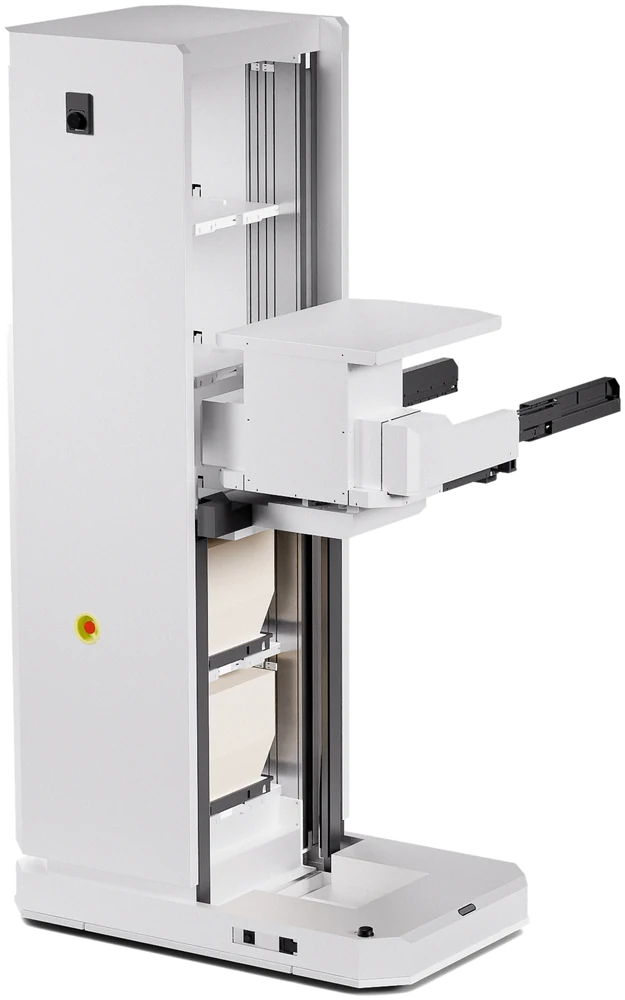

Polaris3d SMAR M3-P Picker Type AMR (left view)Polaris3d SMAR M3-P Picker Type AMR (right view)
Basic Information
ItemValue(EREON M3-P)Remark
Dimensions (L*W*H)1500*940*2750 mm
Turning Radius1,715 mm
Weight800 kg
Payload Size (L*W*H)456*396*390 mm / 12 kg per item
Min. Product SpacingMin. 85 mm
NavigationHybrid SLAM (LiDAR, IMU, Encoder)
Drive SystemQDD System
Equipment InterfacePIO Communication
Max. SpeedMax. 1.0 m/s
Docking AccuracyPosition: ± 5.0 mm / Angle: ± 0.5°
Communication
ItemValue(EREON M3-P)Remark
Wireless CommunicationWi-Fi 5 GHz
Environmental Specifications
ItemValue(EREON M3-P)Remark
Operating Temperature0 ~ 45 °C
Min. Driving / Turning Width1100 mm / 2015 mm
Floor Flatness (mm / 2.25m²)± 4
Battery
Download Drawing (.PDF)
Battery / Power
Battery Type / Product Name / Part No.LFP / IRX-ATR-48V52AH
Battery Case Size (mm)-
Battery Capacity (V / Ah / Wh)51.2 V / 52 Ah / 2,662.4 Wh
Max Operating Time when Fully Charged (Idle) (H) (Unloaded)10
Battery BMS / Communication MethodBMS 내장 / CAN 2.0A, 500 kbps
Displayed Battery InfoTotal Voltage, Total Current, SOC, SOH, Insulation Resistance, Individual Cell Voltage, Max/Min Voltage & Cell No., Max/Min Temp & Sensor No., FET Temp, Cell Count, Temp Sensor Count (Protection status alarm flags not provided)
Full Charging Time (H) (By Charger Current)25 A : Approx. 2.6H / 26 A (0.5C) : Approx. 2.5H / 52 A (1C) : Approx. 1.3H
Battery Weight (kg) (Including Case)30 ± 0.5
Battery Certification-
Charger Product Name / Part No.-
Charger Voltage (V)-
Charger Current (A)≤ 52 (Standard 26) / Current M3 Spec: 25 A
Charger Certification-
Environment / Conditions
Operating Temperature (Min/Max)Charge: 0 / 55 ℃, Discharge: -20 / 65 ℃
Safety Features
ItemValue(EREON M3-P)Remark
Collision PreventionBumper Sensors (Front/Rear/Left/Right)
Collision Avoidance360° Detection (2x 270° LiDAR) / Obstacle Detection (2x Side LiDAR)
Depth SensorsTotal 4EA (Front/Rear, Upper/Lower)
E-Stop Switch2EA
Status LED1EA
Depth Camera
ItemValue(EREON M3-P)Remark
Range0.2 m ~ 2.5 m
Depth FOVH 79° V 62° D 91° ± 3°
Precision1% @ 1m
