100% Domestically ProducedAutonomous Navigation AMRLogistics Robot SMAR Series

Built with 100% Korean technology, from hardware to proprietary control algorithms. Offering unmatched safety and custom integration that budget robots can't replicate, we power unmanned dark factories and smart factory automation.

Get in Touch
SMAR - M3

M3Mobility Module

AI-Based AMR Logistics Solutions for SMD Process Automation Delivering stable transport systems with zero constraints on Smart Loader dimensions (height/length) and magazine sizes.

Mobility Module AMR M3
Basic Information
ItemValue(M3-G/F/C)Remark
Dimensions (WxDxH)650*1410*2100 mm
Weight400 kg
Payload50 kg
Ground Clearance26 mm
Turning Radius1520 mm
Battery
Download Drawing (.PDF)
Battery / Power
Battery Type / Product Name / Part No.LFP / IRX-ATR-48V52AH
Battery Case Size (mm)-
Battery Capacity (V / Ah / Wh)51.2 V / 52 Ah / 2,662.4 Wh
Max Operating Time when Fully Charged (Idle) (H) (Unloaded)10
Battery BMS / Communication MethodBMS 내장 / CAN 2.0A, 500 kbps
Displayed Battery InfoTotal Voltage, Total Current, SOC, SOH, Insulation Resistance, Individual Cell Voltage, Max/Min Voltage & Cell No., Max/Min Temp & Sensor No., FET Temp, Cell Count, Temp Sensor Count (Protection status alarm flags not provided)
Full Charging Time (H) (By Charger Current)25 A : Approx. 2.6H / 26 A (0.5C) : Approx. 2.5H / 52 A (1C) : Approx. 1.3H
Battery Weight (kg) (Including Case)30 ± 0.5
Battery Certification-
Charger Product Name / Part No.-
Charger Voltage (V)-
Charger Current (A)≤ 52 (Standard 26) / Current M3 Spec: 25 A
Charger Certification-
Environment / Conditions
Operating Temperature (Min/Max)Charge: 0 / 55 ℃, Discharge: -20 / 65 ℃
HMI Battery Display
ItemValue(EREON M3-G/F/C)Remark
HMI Battery InfoSOC (%), SOH (%), Voltage (V), Current (A), Temperature (°C), Charging Status
HMI(Display)
ItemValue(EREON M3-G/F/C)Remark
Dimensions (WxDxH)232*150 mm
Motor HW
ItemValue(M3-G/F/C)Remark
TypeSwerve Drive x 2
Auxiliary WheelCaster x 2
Driving
ItemValue(M3-G/F/C)Remark
Type of NavigationSLAM-based autonomous navigation
Wall & Rack FollowingN/A
Minimum Aisle Width850 mm
Driving Specifications
ItemValue(EREON M3-G/F/C)Remark
Maximum Travel SpeedForward : 1.2 m/s l Reverse : 1.2 m/s
Maximum Step HeightVertical step: 6 mm
Vibration Stability
ItemValue(EREON M3-G/F/C)Remark
Noise Level70dB or less

M3 Case Studies

Polaris3D Actual Industrial Site and M3 Operation Video

View all case studies
Dark Factory Automation Solution, M3-G

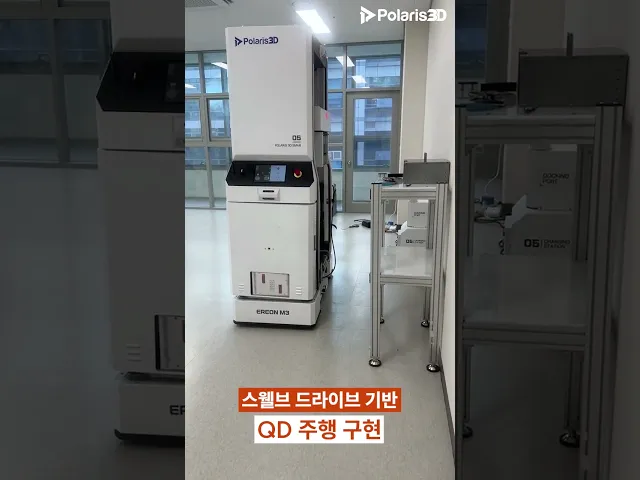

Swerve drive-based QD locomotion (M3-G)
High-precision vision sensor-based auto-leveling, M3-G
