100% Domestically ProducedAutonomous Navigation AMRLogistics Robot SMAR Series

Built with 100% Korean technology, from hardware to proprietary control algorithms. Offering unmatched safety and custom integration that budget robots can't replicate, we power unmanned dark factories and smart factory automation.

Get in Touch
SMAR - M2

M2-SShelf-Type Mobile Robot

shelf type amr SMR
Battery
polaris3d M2 battery315mm260mm135mm
Basic Information
Size (W*D*H)640*570*1260 mm
Weight70 kg
Load capacity25kg / 3 tray
Exterior materialMetal
Upper Module Size (W*D)550*500mm (3tier)
Upper Module Height1st stage: 350mm 2nd stage: 700mm 3rd stage: 1200mm (Adjustable between 350mm and 1100mm in 10 mm increments.)
Battery
Download Drawing (.PDF)Download 2D CAD (.DWG)
Battery / Power
Battery Type / Model / Part No.Li-Ion / LV-25V25AH-DV255COM / CM20KFVFZ101
Battery Case Dimensions (mm)Extruded Aluminum Case / Body 255 (Cross section 95.5 × 143)
Battery Capacity (V / Ah / Wh)25.8 V / 25 Ah / 630 Wh
Max. Idle Operating Time at Full Charge (h) (No Load)12
BMS Application / Communication InterfaceEmbedded BMS / Selectable: CAN, CANopen, RS-232C, RS-422, RS-485 (D-sub 9-pin, CAN=Female)
Displayed Battery InformationVoltage, Current, SOC, SOH, Temp, Est. Charge/Discharge Completion Time, Remaining Capacity (Ah/Wh), Charge/Discharge Cycles, P/N, Cell Series Count, Firmware Version, Fault Alarms (Overvoltage, Undervoltage, Overcurrent, High Temp, Low Temp, BMU Error) / OLED display equipped for units produced after 2026.01
Full Charge Time (H) (By Charger Current)17 A: approx. 1.8h / 13 A: approx. 2.4h
Battery Weight (kg) (incl. Case)7
Battery CertificationsUN38.3, CE (EMC), CE (EN 62619)
Charger Model / Part No.Tavos TC-900W-25V30A
Charger Voltage (V)29.0 V
Charger Current (A)4 stages: 13 / 17 / 21 / 30 A > Set to 17 A (Max allowable battery current: 18 A)
Charger CertificationsCE(EMC · LVD, TUV), CB, KC(EMC), FCC
Environmental Conditions
Operating Temperature (Min/Max)Charge: 0 to 45 °C / Discharge: -20 to 60 °C
Safety & Certifications
International Transport CertificationsUN38.3 certified / MSDS: UN3481, Class 9 (EN/CN) / HS Code 8507.60.9000
Global EMC CertificationsCE (EMC) certified
Global Safety CertificationsCE (EN 62619) certified
Lead Time
Standard Lead Time4 weeks
Custom Lead Time4 weeks
HMI Battery Display
HMI Battery InfoSOC (%), SOH (%), Voltage (V), Current (A), Temperature (°C), Charging Status
Weight
Drive Unit Weight48 kg
Battery Weight7 kg
Total Weight55 kg
Sensor
LiDAR2 front & rear
Depth CameraBottom 2
Safety BumperApplied
Motor Type6.5 inch
Driving
STOApply
Driving modeFull Self-Driving
Max. Speed1.2 m/s
Max. Mapping Area500*500m
Service Module
Loadable Size520*460*600mm
MaterialMetal
Display10 inch touch display

M2 Case Studies

Polaris3D Real Industrial Site and M2 Operation Video

View All Case Studies
Polaris3D SMAR-M2 Introduction Video

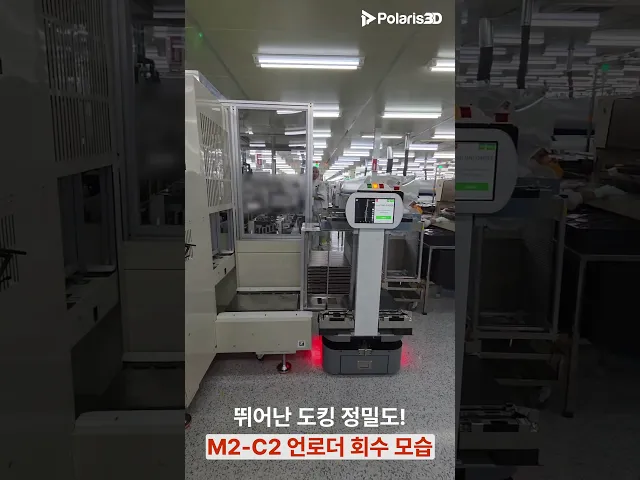

Company J Reference: Finished product retrieval from unloader after precision docking
Loader/Unloader Docking Reference: Company A
