Automated Magazine Loading & Unloading Solution for SMT-SMD Production Lines

Polaris3D’s SMAR (Seamless Manufacturing AI Robot) provides automation and unmanned logistics solutions optimized for a wide range of manufacturing environments.
In particular, SMAR demonstrates exceptional performance in magazine loading and unloading automation for SMT-SMD (Surface Mount Technology / Surface Mount Device) production lines and SMT-PCB assembly lines.

For manufacturers striving to enhance productivity in their SMT-SMD operations, Polaris3D offers proven solutions — backed by real-world references and field-proven implementations — using the SMAR system to eliminate inefficiencies and optimize throughput.

❓ Six Real Reasons Why SMT-SMD Production Lines Struggle to Improve Productivity

The Machines Are Fast — But the Line Is Slow!

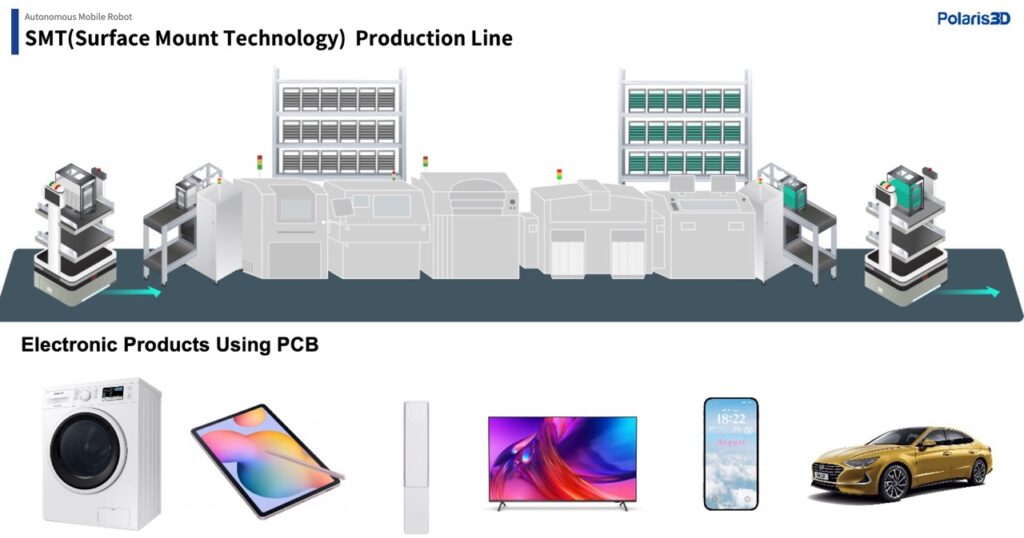

SMT (Surface Mount Technology) lines are the backbone of today’s electronics manufacturing.
These high-speed systems can place thousands of chips per second, yet when we calculate the overall equipment effectiveness (OEE), the results often fall short of expectations.

While the process equipment has become faster, the way the line is managed — from process flow and takt time control to changeover operations — hasn’t kept up.

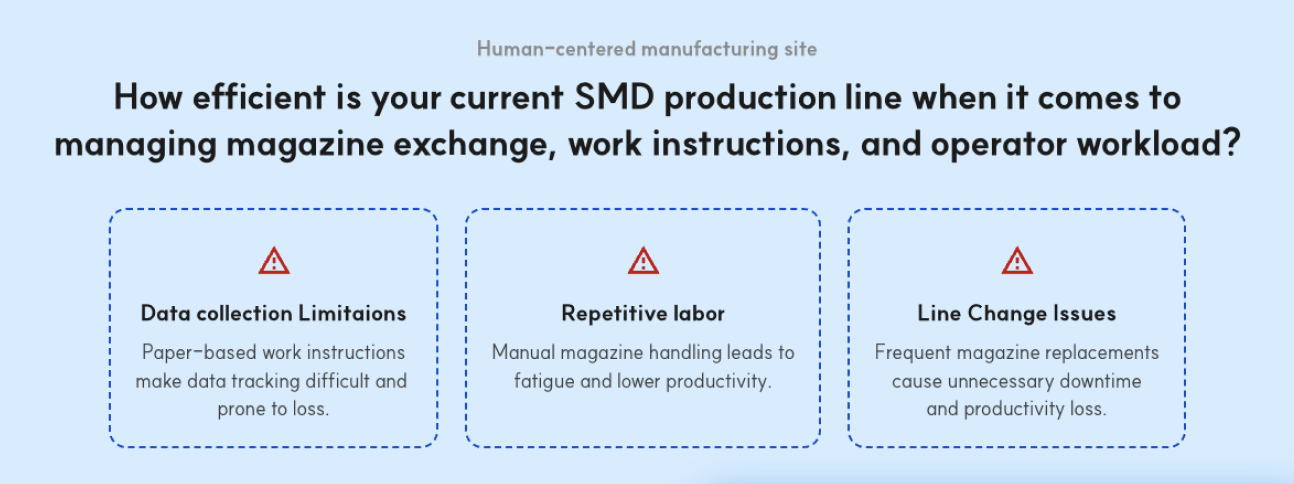

Many of these inefficiencies arise from human-dependent workflows, where manual decisions and actions create variability and slow response times.

No.	Issue	Description
①	Excessive Changeover Time	Frequent reel and feeder replacements cause cumulative downtime.
②	Line Balance Inefficiency	Certain machines become bottlenecks, disrupting overall line flow.
③	Lack of Data & Automation	Insufficient MES or IoT integration leads to inefficient operations and poor visibility.
④	Increased Quality Issues / Rework	Limited inspection of micro components results in higher defect and rework rates.
⑤	Inefficient Material Flow	Delays in reel replacement and material supply reduce throughput.
⑥	Non-Optimized Layout	Inefficient logistics and inspection loops due to suboptimal floor layout.

Revealing the Six Key Factors Impacting Productivity
— and How Polaris3D’s SMAR Maximizes Efficiency

1️⃣ Long Changeover Time

In a high-mix production environment, every product change requires feeder replacement, reel loading, and setup adjustments — all of which take considerable time.
According to one study, setup time can reach as long as 1 hour and 8 minutes per changeover.
In other words, no matter how fast the machines are, if the preparation time between product changes is long, the overall utilization rate drops dramatically.

2️⃣ Line Balance Inefficiency

Proposed Solution: AMR-Based Magazine Transfer Automation

In many SMT-SMD lines, bottlenecks occur due to differences in processing speed between chip mounters and pick-and-place machines.
As a result, some equipment remains idle while others operate under heavy load — creating an imbalance that reduces the overall line throughput.

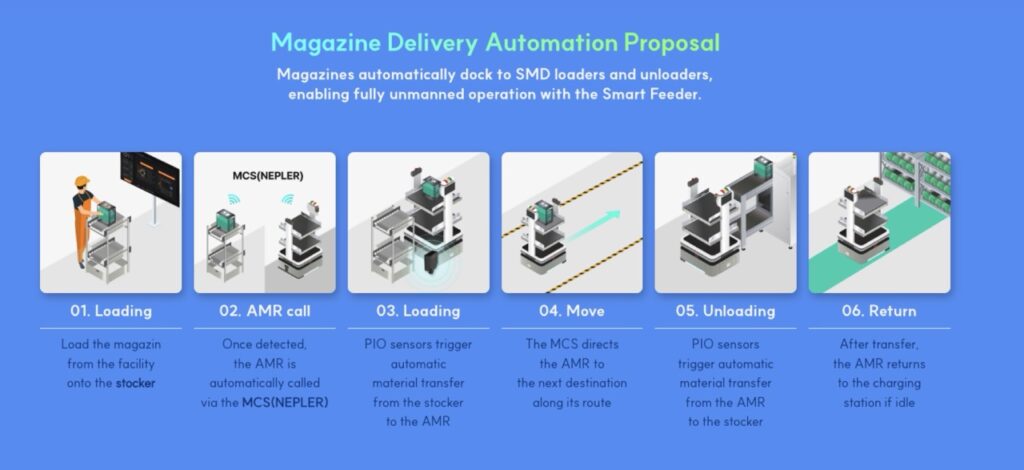

By implementing AMR (Autonomous Mobile Robot) magazine transfer automation, production flow can be synchronized between stations, minimizing idle time and improving real-time balance across the entire line.

3️⃣ Lack of Process Automation and Data Utilization

Many SMT factories still rely on manual feeder replacement, hand inspections, and isolated data systems between equipment.
As a result, they struggle to respond quickly to material shortages, equipment anomalies, or defect accumulation — leading to inefficiencies and lost production time.

Polaris3D goes beyond simple magazine transfer automation with its AMR (Autonomous Mobile Robot).

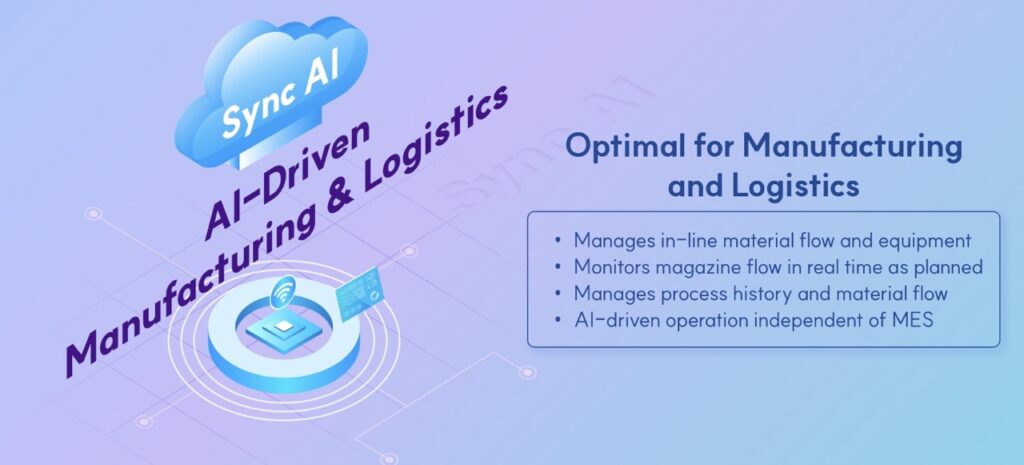

By collecting and integrating data from both existing equipment and AMR operations, the system leverages Sync AI, Polaris3D’s manufacturing logistics AI, to analyze and optimize takt time — delivering a truly intelligent logistics solution that maximizes line efficiency.

4️⃣ Increasing Quality Issues and Rework

As components become smaller and more densely packed, even a slight lack of inspection capacity can cause defect rates to rise sharply (SpringerLink).
Defects and rework are among the most critical factors leading to productivity loss — consuming time, manpower, and materials that could otherwise be used for value-added production.

5️⃣ Inefficient Material Feeder and Reel Replacement Flow

Material supply and feeder setup account for over half of total changeover time (MDPI).
When reel replacement is frequent or feeder preparation is delayed, equipment downtime becomes inevitable — directly impacting overall line productivity and OEE.

Automating reel handling and feeder logistics using AMR-based transport and synchronization systems can dramatically reduce waiting time and maintain a consistent production flow.

⭐️ Optimizing Line Layout and Material Flow

SMT lines often lose efficiency not because of machine performance, but due to inefficient spatial layout and material flow.
When inspection, repair, and packaging processes are poorly arranged, unnecessary movement and waiting time inevitably occur.

At Polaris3D, we address this challenge through our SMAR (Seamless Manufacturing AI Robot) system, enabling:

1️⃣ MES/MCS Integration — automatic data entry with improved accuracy
2️⃣ Simplified Operations — autonomous transport, 24/7 operation, and increased workflow efficiency
3️⃣ Smart Material Tracking — product location and stacking data recorded in real time to ensure FIFO (First-In, First-Out) flow

By leveraging Manufacturing Logistics AI, Polaris3D delivers true logistics optimization that connects your production line seamlessly from start to finish.

Have these insights addressed your SMT-SMD production challenges?
Now is the time to take your factory automation and unmanned operations to the next level — together with Polaris3D.

References & Sources : https://www.mdpi.com/2306-5729/10/2/16
